3d-MAG SSPEI235S - PEI Magnetic Smooth PEI Coated Spring Steel Base Sheet

PEI Magnetic Smooth PEI Coated Spring Steel Base Sheet
Magnetic Spring Steel Sheet With One Side PEI Coated, One Side PEI Powder Textured Coated 235 x 235mm For Ender3/3s/3Pro etc etc.
Note: Other sizes available.
Price:
NZ$ 97.18 including GST

NZ$ 84.50 excluding GST
3d-MAG SSPEI235S
In Stock
Rating:
Purchase Qty:


Overview
Quick Details
3d printer parts: Spring steel PEI
size: customizable
Material:Ultem PEI
Spring steel sheet:thickness 0.4mm /0.5mm
adhesive:3M 468P
Color:black /Amber
Packaging Details spring steel black PEI sheet :wrap with foamed then well packed in hard carton
Product Description
Black PEI power coated spring steel sheet flexible build plate for Ender 3d printers

 1.Black PEI powder

 2.PEI sheet :Ultem PEI sheet ,thickness 0.15mm ,temperature resistance: more than 200degree.

 3.Spring steel sheet: thickness 0.4mm,0.5mm are available ,very flat and the temperature transfer ,flexibility very good.

 4.working temperature up to 130 degree

  Lankeda Black PEI power coated spring steel sheet flexible build plate for Voron  Ender 3d printers

 Good flatness, magnetism and flexibility spring steel sheet

Thickness 0.4mm ,0.5mm are available

 Lankeda Black PEI power coated spring steel sheet flexible build plate for Voron  Ender 3d printers

  Amber PEI power coated type

 Lankeda Black PEI power coated spring steel sheet flexible build plate for Voron  Ender 3d printersLankeda Black PEI power coated spring steel sheet flexible build plate for Voron  Ender 3d printers

 Magnetic PEI coated spring steel sheet including :

1. Smooth PEI or PEI power layer

2. Spring steel sheet

3. Magnetic base

 Lankeda Black PEI power coated spring steel sheet flexible build plate for Voron  Ender 3d printers

Important Information:

1.Recommend print temps
  •  PLA – 60C
  • HTPLA – 60C

  • PETG – 70-80C

  • PCTG – 70-80C

  • ABS – 100C

2.Product Usage Guidelines

 PETG/PCTG/TPU– If you are not careful with your 1st layer you can risk bonding the PETG/PCTG/TPU to the PEI surface. This will damage the surface. To prevent damage to the surface apply hairspray or PVA gluestick before printing PETG/PCTG/TPU on the PEI
  • Part Removal– Make sure your plate is at close to room temp (under 30C) before removing parts. If you remove when hot it is more likely to damage the surface

 3.How to use?
  1. After apply the PEI sheet on our special spring stainless steel sheet, You can simply use 4 clips or magnets to hold it on the heatbed, then enjoy the printing.

  2. Easily remove 3D prints on printer by removing the spring steel plate, flexing it, and popping the print off. It's simple and makes the print removal process much easier.

  3. For details, Check the guide video on Youtube

 Available size :

220*220mm
235*235mm
224*254mm
310*310mm
400*400mm
350*350mm
500*500mm
600*600mm
                            Customize any size according to your drawing

 Please contact Printsource3d if a different size is required as we only stock the 235 x 235 mm.and 310 x 310 mm

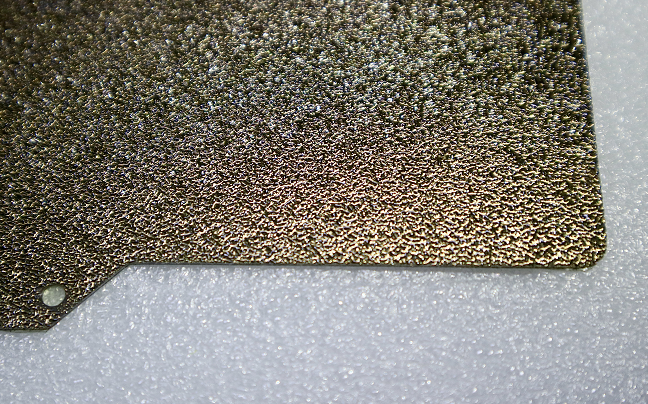

Doubled-sided PEI Powder-coated spring steel sheet with magnet 3M base makes for the best all around build surface. Textured or smooth finish depending on the side you use. Easy to remove plate from printer then simply bend a little to pop prints off.

Powder coating directly on metal makes it very hard to damage this build plate. If a heated nozzle crashed into it, the metal can dissipate the heat. Powder coating also gives the surface a distinct textured look that will be visible on your prints. The textured surface hides most of the mechanical damage caused by tools.

Material Compatibility:
PLA ABS PETG TPU PVA etc.

Size:
235x235mm
Fits Ender 3, Ender 5 etc.

​​Maintenance:
Wipe the print surface before and after a print with isopropyl alcohol to maintain a clean surface for maximum bed adhesion strength. As with any build surface, make sure you are not printing too close to the bed to avoid possibly infusing the filament into the build surface. If printing PETG, TPU, TPE, and RYNO, make sure the bed is heated BEFORE attempting to remove the print from the bed.

Package listing:
1* Steel sheet
1* Magnet base
